- H -403-C

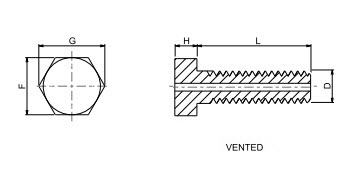

Line Drawing - Click to Enlarge

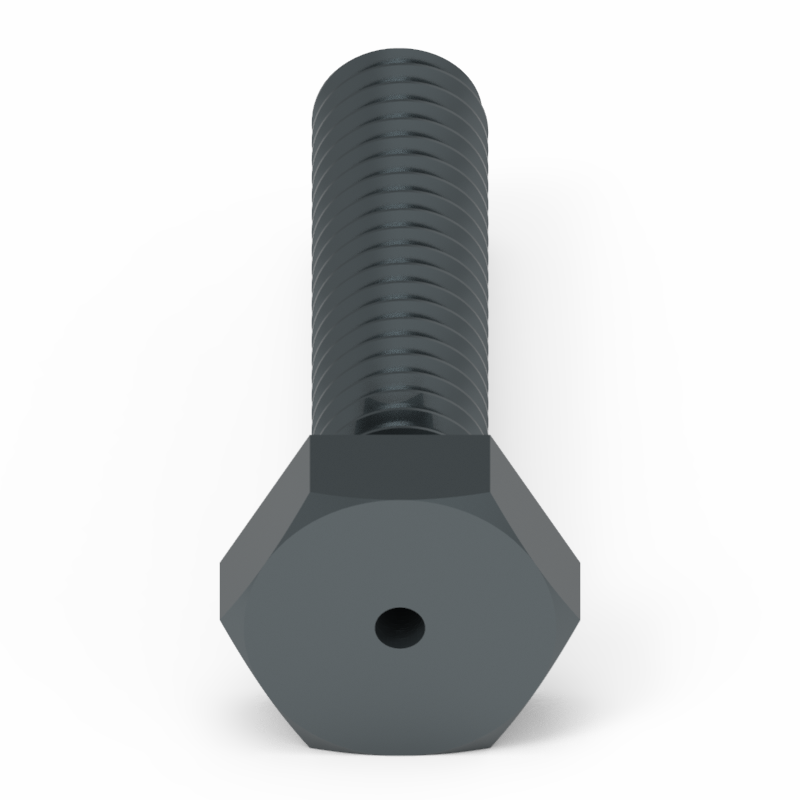

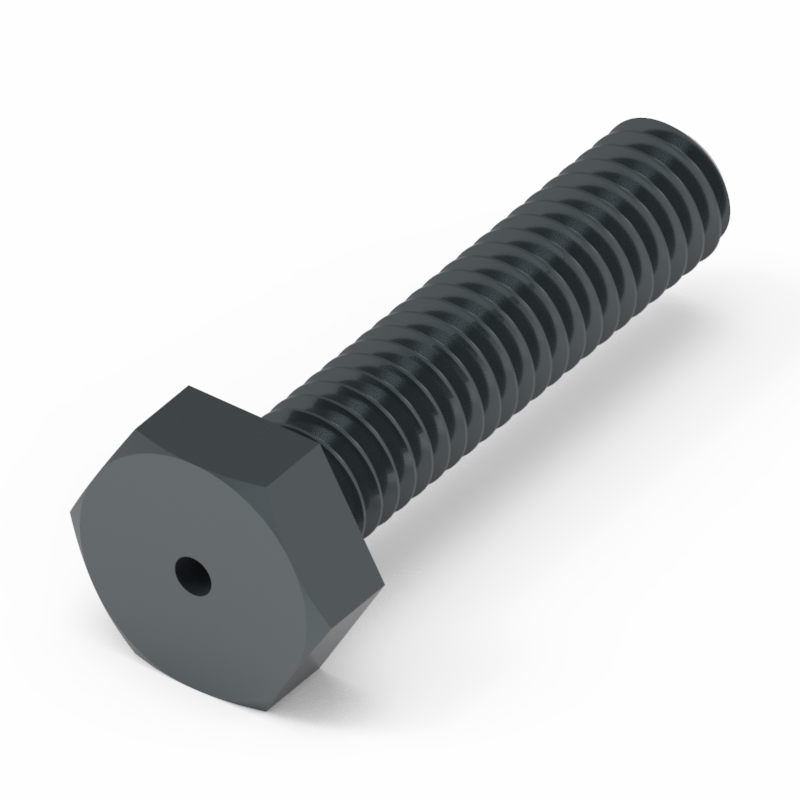

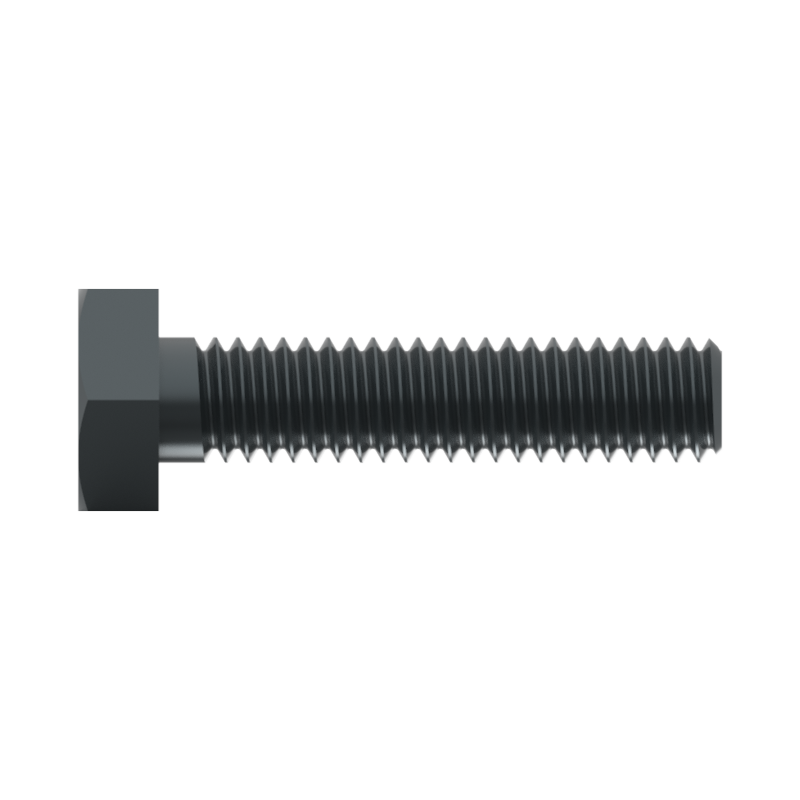

Screw, Hex Head, Vented, MoS2 Coated
Model: H -403-C
Order Now
Price Per Unit:
Total Price:
Total Price:
| Quantity |
|
Minimum Order Quantity: 25
Working days to ship: 10
| QTY: | 25-99 | 100-499 | 500-999 |
| Price for each | $1.63 | $1.22 | $1.04 |
Contact UC Components sales office for quantities of 1000+,
special corporate discounts, partial shipments, and contract.
Specifications
| Unit System | Inch |
| Description | Screw, Hex Head |
| Material | 18-8 Stainless Steel |
| Finish | MoS2 Coated |
| Vented | Center-Vented |
| Vent diameter | 0.036 (+.003 / -.000) |
| Thread Size Nom. | #4-40 |
| D | 0.11 |
| F | 0.18 |
| G | 0.202 |
| H | 0.05 |
| L | 3/16 |
| Source Specification | ASME B18.6.3 |
| Weight (lbs) | 0.002 |
| List Price (25-99) | .63 |
| Days to Ship | 10 |
| MOQ | 25 |
